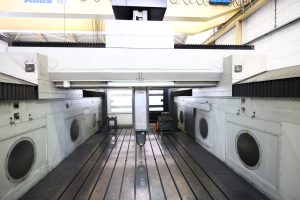

Double Column Milling MEMPHIS-U 9000

– chain magazine with 80 places and tool change arm with double gripper

– turntable integrated in the boom, to accommodate only one milling head, as a

controlled axis of the CNC control with automatic positioning every 0.001° (360,000 positions)

– vertical milling head in special design with reinforced bearing Ø 100 mm set up for automatic milling head change

– CNC-controlled universal milling head 45° with automatic positioning 360,000 positions every 0.001° as 5th axis

– coolant device with tank approx. 1000 liters, pump adjustable from 6-40 bar,

flow rate 60 litres/min. for external cooling with belt filter and magnetic separator instead of standard

– automatic switching water/air via M-function for inner and outer coolant supply

– internal coolant supply according to DIN 69871 A-D through the spindle center

for vertical and universal milling head

– chip conveyor on both sides of the table as well as additional transverse chip conveyor

– power main spindle motor increased to 37 kW

– machine collision protection Brankamp CMS, 1-channel
