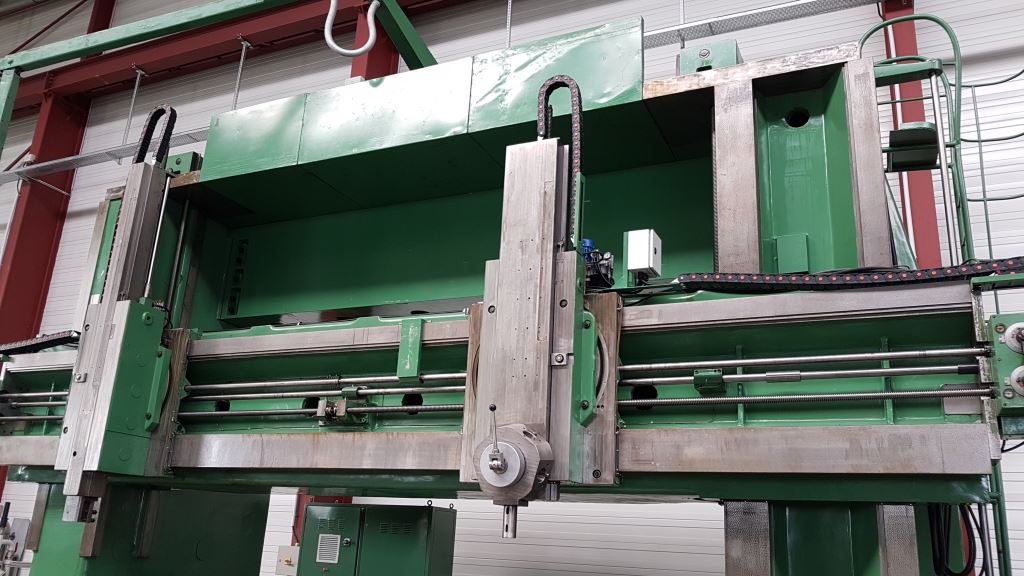

TITAN Turning Lathe

Faceplate Diameter	4000 mm
Swing Diameter	5000 mm
Turning height	2200 mm
Table turning Speeds	1.02-92 rpm
Table load	18 t
Travel z-axis	840 mm
U-axis	1160 mm
1 turret-support -swivelable +/-	+/- 35°

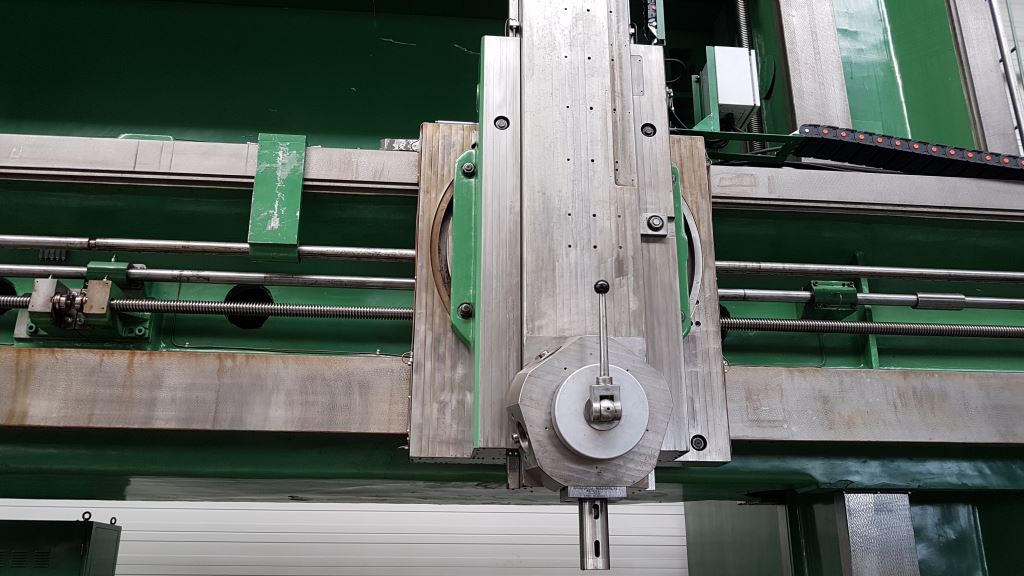

1 ram-support -swivelable	+/- 35 °
Feed – turret head
Total power requirement	60 kW
Weight of the machine ca.	70 t
Dimensions of the machine ca.	7.5 x 6.5 x 7 m
Accessories
Vertical Supports (one with turret) 2
Clamping jaws 4
Tool holders 3
Siemens Simodrive DC Master for main spindle
Description
New electrical cabinet incl. Siemens Inverter
New Control Panel
New hydraulic Equipment
All clutches and have been checked and replaced if necessary
Grinding of guide ways
All geometrical parameters have been checked
New painting
Upgrading and retrofitting incl. also the repair of worn parts and the replacement of worn out parts.

Changes and errors in the technical details and the information reserved
